Texture Analysis

Texture analysis is one of the most important tools in evaluating our customers patterns on the micro and macro level

Body

Equipment

  • Keyence VR 6200 extended with proprietary software for spatial resolution determination
  • ALE Omniscan 16bit depth scanner for rollers (Ø 24” – overall length 150”)
  • Mitutoyo Profilometer (Surftest Roughness Tester)
  • Gloss Meters (20,60 and 85° )
  • Magnetic coating thickness tester
  • Hardness testers

Analysis

  • Rendering of gray scale textures
  • Mapping of textures on surfaces
  • Analysis of join lines under different lighting conditions
  • Peak/valley analysis – spacing of nearest neighbors
  • Gloss uniformity determination from artwork

Pattern Development

  • Random pattern generation
  • Parametric textures
  • Manipulation of textures for functional or visual effects
  • Sample plaques from computerized renders
  • Lab testing, changing of texture to account for process variations
Image tint color
rgb(36,62,121)
Hero text color
rgb(255,255,255)

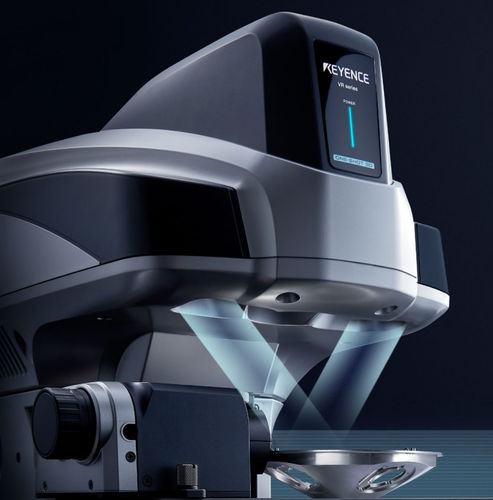

Texture analysis machine

Up to 6500 dpi with 0.1 µm depth resolution
Optical profilometer
3D rendering and scanning (x,y & z stitching)
Volume and area measurements
