Gravure Engravings - AME Tooling Library

Body

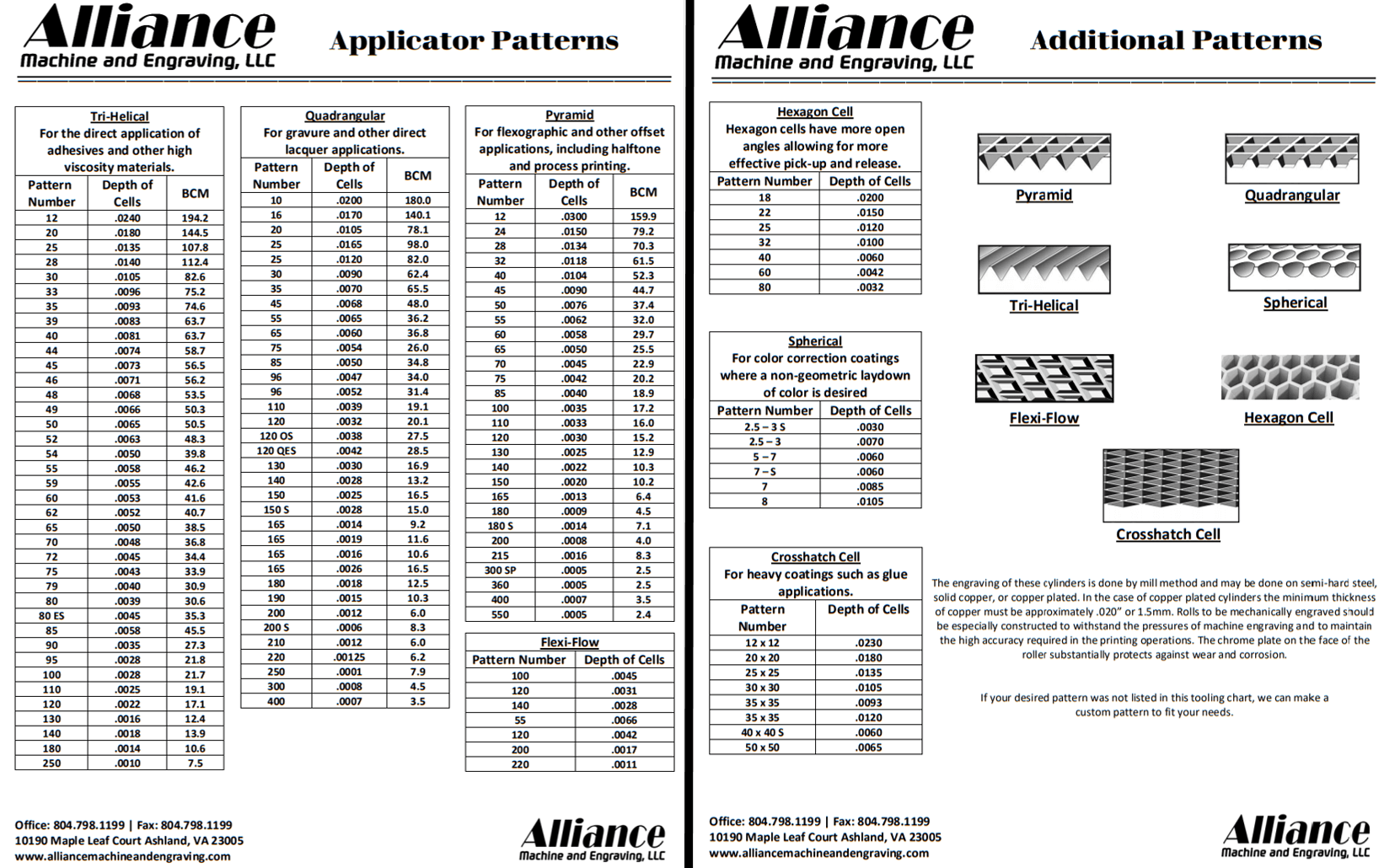

Typical Gravure Patterns



Pyramid cell - Consists of small even cells having the form of an inverted pyramid with a quadrangular base; separated by cell walls of uniform width and height.

Quadrangular cell - Also an inverted pyramid but with the point truncated.

Tri-helical cell - Consists of diagonal grooved lines.

Sphere cell - Consists of small evenly spaced cells having the form of an inverted half-sphere; cell count normally represents the numbers of cells within a square inch.

Contact us to see our full tooling library which includes special precision engraved patterns. If you do not find a pattern that fits your needs, we can make a custom tool for your job.

Tooling Library




We are a global supplier of engraved embossing rolls and a manufacturer of the machines that use them. Our U.S. East Coast location makes us an ideal supplier to manufacturing facilities on both sides of the Atlantic. And the Equator.

Headquarters:
10190 Maple Leaf Ct.
Ashland, VA 23005

Office: +1-804-798-1199
Cell: +1-804-921-0596
Fax: +1-804-798-1195

DID YOU KNOW...?

Not all metal embossing rolls are created equal. Our 63 – 65 Rockwell C roll sets are induction hardened for maximum case depth and have a chrome content of 3% min to add toughness.
